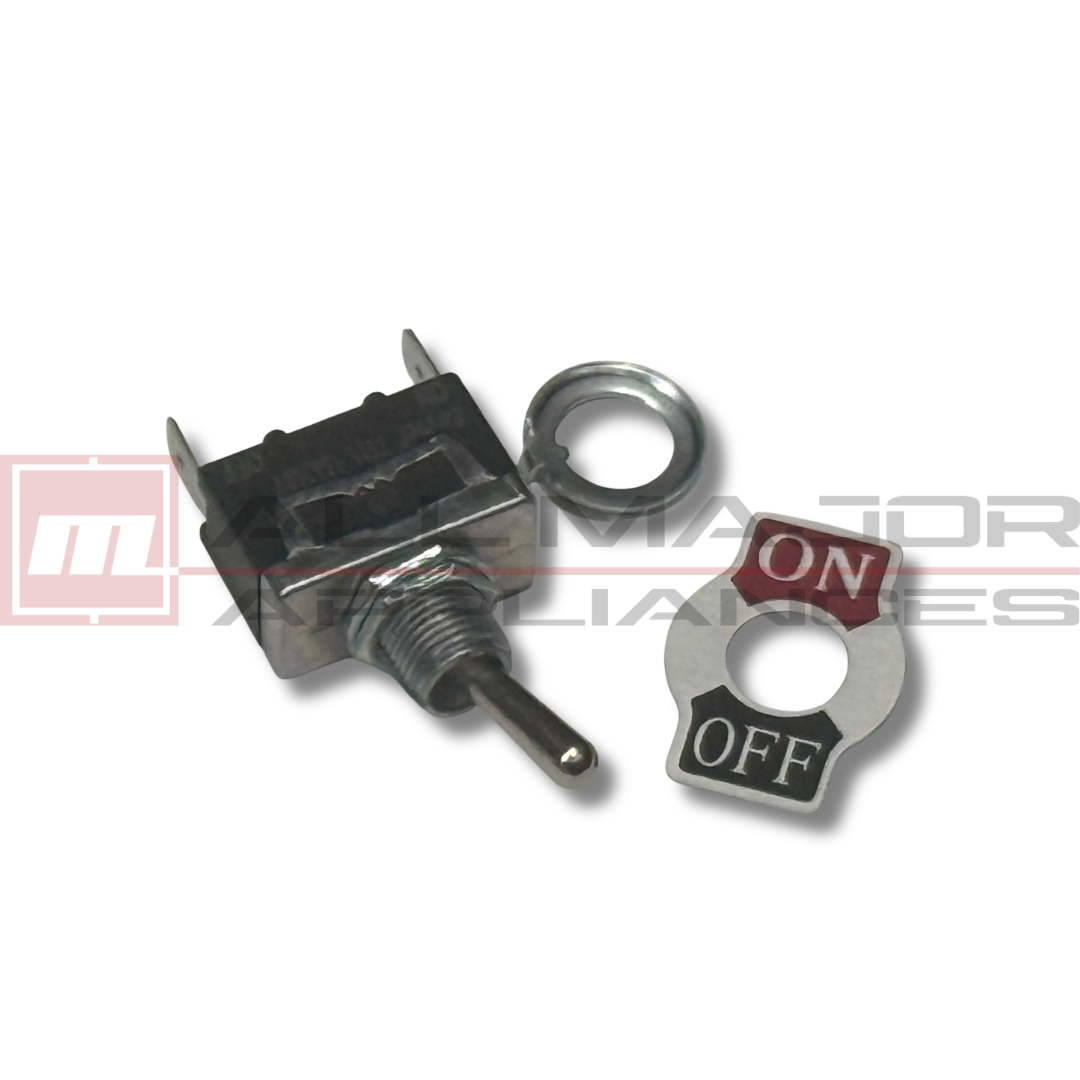

T511A UNIVERSAL ON/OFF Toggle Switch 15A/250V Metal Lever (w/ Label Panel)

In stock
Item Number: COM-UNI-11A
$19.95 incl. GST

Our support team are available Monday-Friday 9am-5pm (AEST). Please provide your model no. / article no. / part no. in your query:

Specifications
  • Part Number T511A
  • Brand UNIVERSAL
  • Item Number COM-UNI-11A

Helpful documents

Will this part suit my model?

Technical information

Product Overview:

Built for residential and commercial environments; Homes, apartments, and offices. Ideal for both retail and hospitality applications.

  • Single Pole/Single Throw On/Off with 6.3mm QC Terminals
  • QC Terms 12mm diameter thread
  • Contact Resistance: 15 milliohm max. (initial)
  • Insulation Resistance: 100M ohms min. (at 500 V DC)
  • Dielectric Strength: 2,000VAC, 50/60 Hz for 1 minute
  • Vibration: 10 to 55Hz 1.5mm double amplitude
  • Operating Temperature: -25 to +80 Degrees C.
    Humidity 85% RH max
  • Service life: Mechanically: 500,000 operations minimum, Electrically: 100,000 operations minimum
  • Handle Strength: 11.5Kg for 1 minute
  • Terminal Strength: 2.5Kg for 1 minute

Details
  -
Contents 1x ON/OFF Toggle Switch 15A/250V Metal Lever
Compatible brands UNIVERSAL
Dimensions  -
Voltage 250V
Amps 15A
Alternative part number/s T5-11, T5-11A
