Home » 1m 2.5mm Single Core 50/0.25 180°C Silicone Insulated Cable - Black
UNIVERSAL

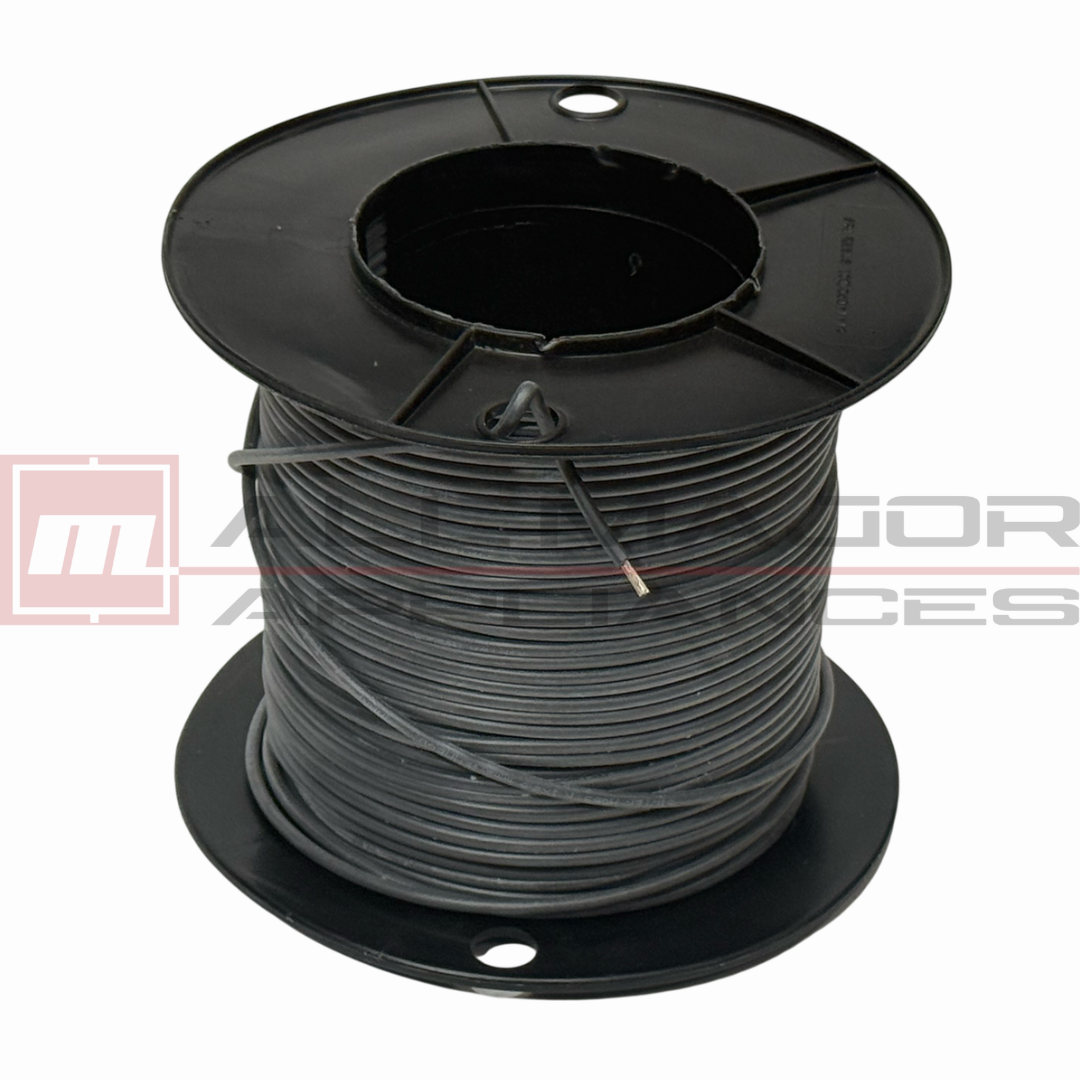

1m 2.5mm Single Core 50/0.25 180°C Silicone Insulated Cable - Black

In stock
Item Number: COM-UNI-BLK
$5.20 incl. GST

Our support team are available Monday-Friday 9am-5pm (AEST). Please provide your model no. / article no. / part no. in your query:

Specifications
  • Part Number 2.5MMBLK
  • Brand UNIVERSAL
  • Item Number COM-UNI-BLK

Helpful documents

Will this part suit my model?

Technical information

Product Overview:

The 2.5mm Single Core 50/0.25 180°C Silicone Insulated Cable is flexible, designed for use in: Flexible and Fixed Applications, Internal Switchboard Wiring, Machine & Equipment Cabling Lighting Equipment, Furnace, Oven, Convectors, Electric Radiator Applications and other Industrial Applications.

  • RoHS COMPLIANT
  • Tinned annealed copper conductors AS/NZS1125/ASNZS5000.1 Class 5
  • Low Smoke Zero Halogen in accordance with VDE 0482 part 267
  • 180° Silicone Rubber E12 Insulation
  • Temperature Ratings: -60°C to 180°C
  • -60° to 180°C Operating Temperature
  • 180°C Operation
Details
 -
Contents 1x 1m 2.5mm Single Core 50/0.25 180°C Silicone Insulated Cable - Black
Compatible brands UNIVERSAL
Dimensions Nominal Conductor Area = 1 x 2.50mm²
Strands Diameter = Ø50/0.25mm
Nominal Insulation Thickness = 1.0mm
Nominal OD = 4.0mm
Voltage 300/500V
Test Voltage 2000V
Alternative part number/s SC-50180-BLK
